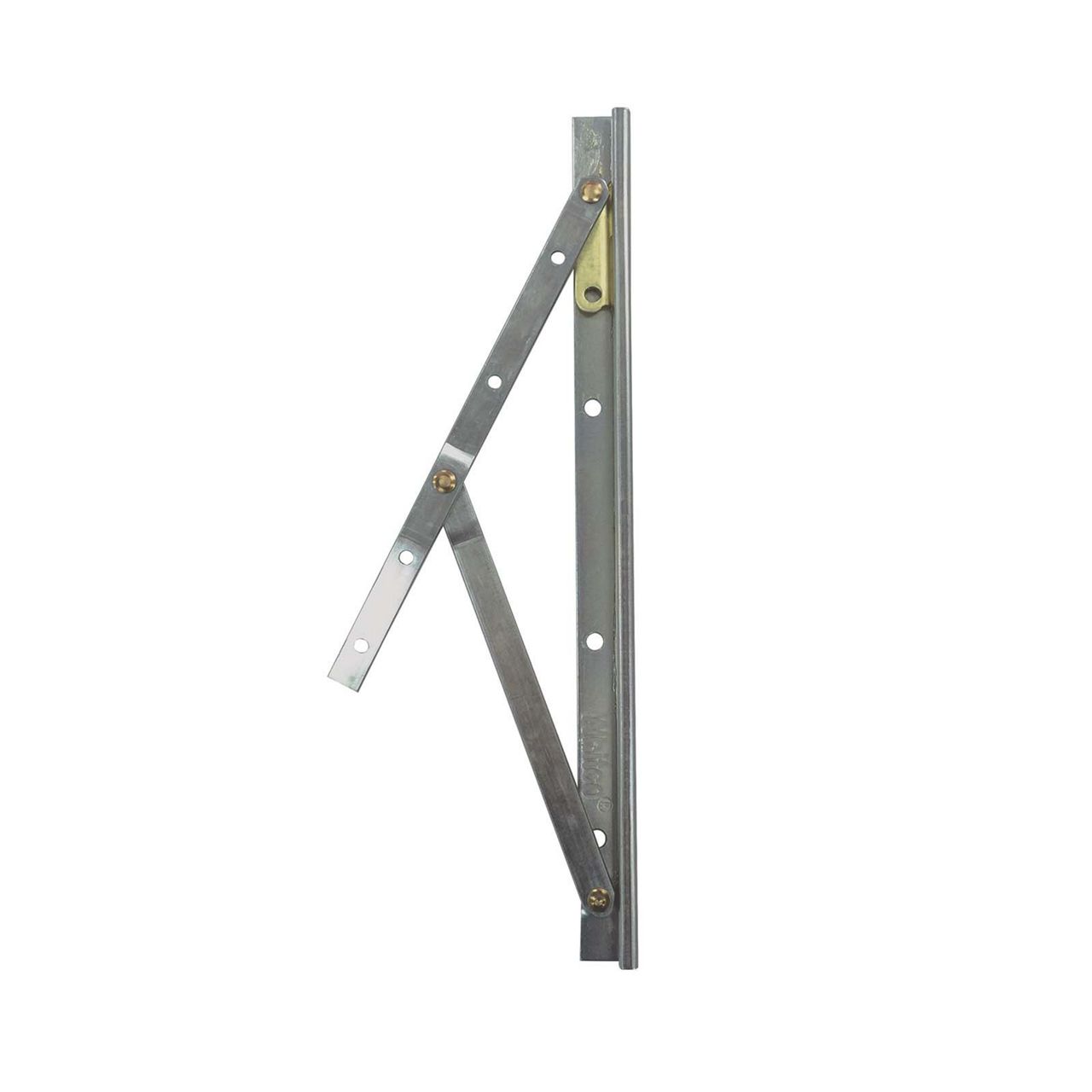

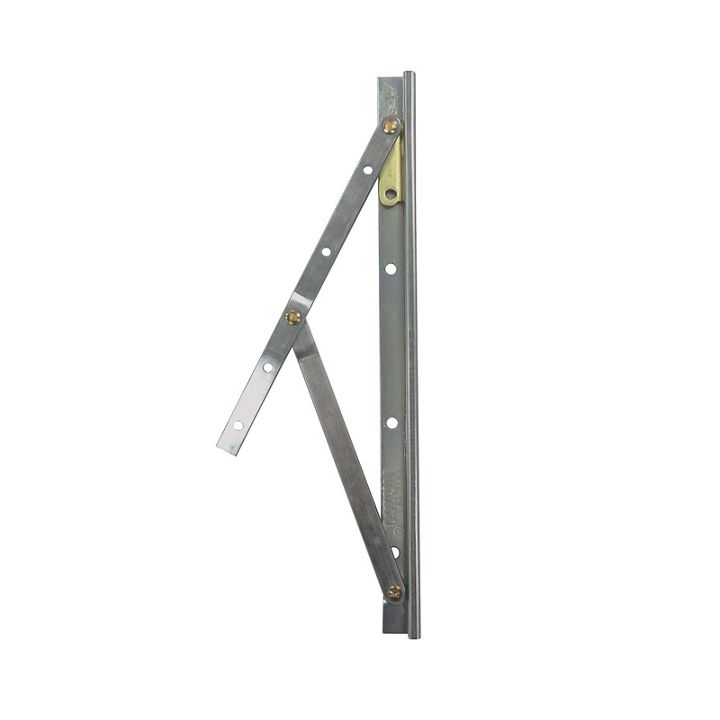

Whitco Window Stays

Robust metal window stays for casement or awning windows.

Robust metal window stays for both casement or awning windows. Available in both Standard (wide) and Narrow track designs for timber or aluminum joinery.

Friction versions for manually open sashes and Non-friction versions for mechanically operated sashes.

Features of the Standard & Narrow Window Stays

  • Robust construction
  • Both Standard (wide) & Narrow track designs
  • Both Friction and Non-friction versions
  • Bronze metal guide / friction foot
  • Suit for non-lipped window joinery only
  • Packed with fastening screws
  • Combination Retail/Trade pack
Image: ff5f0-whitco-window-stays
ff5f0-whitco-window-stays

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Performance

Corrosion
Minimal effect to full exposure to 96 hours Neutral Salt Spray mounted on powder coated Aluminium sill section.

Window size and weight guidelines

  • Maximum weight of sash 12.3 kg
  • Maximum recommended casement sash height is 1,350 mm and awning width is 900 mm
  • Recommended maximum window size & sash weight
  • Maximum recommended casement sash height is 1,350 mm
  • Maximum recommended awning sash width is 900 mm

Standard width versions

 Track length Casement sash width (mm) Casement sash weight (Kg) Awning sash height (mm) Awning sash weight (Kg)
 200 mm  Up to 635  10.0  Up to 535  6.3
 300 mm  636 - 790  11.8  536 - 710  7.8
 400 mm  791 - 840  12.3  711 - 990  10.0
 500 mm  Not recommended    991 - 1,220  11.8



Narrow width versions

Track length Casement sash width (mm) Casement sash weight (Kg) Awning sash height (mm) Awning sash weight (Kg)
200 mm Up to 635 9.5 Up to 535 6.0
300 mm 636 - 790 11.3 536 - 710 7.3
400 mm 791 - 840 11.8 711 - 990 9.5
500 mm Not recommended   991 - 1,220 11.3



Standard Finishes

  • Passivated zinc plated steel/Silver finish 01
  • Stainless steel/Natural finish 04

Application Information

  • Standard versions suit a track rebate of 27.0 mm x 9.5 mm to suit the required track length
  • Narrow versions suit a track rebate of 20.5 mm x 8.0 mm to suit the required track length
  • Whitco Window Stays Brochure(PDF, 362 KB)
ItemPart numberBarcode
TRADE PACK
Narrow Width - Steel - Passivated zinc plated Silver finish, 200mm FrictionW0203019310584000275
Narrow Width - Steel - Passivated zinc plated Silver finish, 300mm FrictionW0207019310584000312
Narrow Width - Steel - Passivated zinc plated Silver finish, 400mm FrictionW0211019310584000350
Narrow Width - Steel - Passivated zinc plated Silver finish, 500mm FrictionW0215019310584000381
Narrow Width - Steel - Passivated zinc plated Silver finish, 200mm Non-FrictionW0204019310584000299
Narrow Width - Steel - Passivated zinc plated Silver finish, 300mm Non-FrictionW0208019310584000336
Narrow Width - Steel - Passivated zinc plated Silver finish, 400mm Non-FrictionW0212019310584000374
Narrow Width - Steel - Passivated zinc plated Silver finish, 500mm Non-FrictionW0216019310584000404
Narrow Width - Stainless Steel, 200mm FrictionW0203049311847713710
Narrow Width - Stainless Steel, 300mm FrictionW0207049311847713703
Narrow Width - Stainless Steel, 400mm FrictionW0211049311847713741
Narrow Width - Stainless Steel, 200mm Non-FrictionW0204049311847713727
Narrow Width - Stainless Steel, 300mm Non-FrictionW0208049311847713734
Standard Width - Steel - Passivated zinc plated Silver finish, 200mm FrictionW0103019310584000046
Standard Width - Steel - Passivated zinc plated Silver finish, 300mm FrictionW0107019310584000084
Standard Width - Steel - Passivated zinc plated Silver finish, 400mm FrictionW0111019310584000121
Standard Width - Steel - Passivated zinc plated Silver finish, 500mm FrictionW0115019310584000152
Standard Width - Steel - Passivated zinc plated Silver finish, 200mm Non-FrictionW0104019310584000060
Standard Width - Stainless Steel, 200mm FrictionW0103049311847761360
Standard Width - Stainless Steel, 300mm FrictionW0107049311847761377
Standard Width - Stainless Steel, 400mm FrictionW0111049311847761384
Standard Width - Stainless Steel, 500mm FrictionW0115049311847761391
Standard Width - Stainless Steel, 200mm Non-FrictionW0104049311847761407
