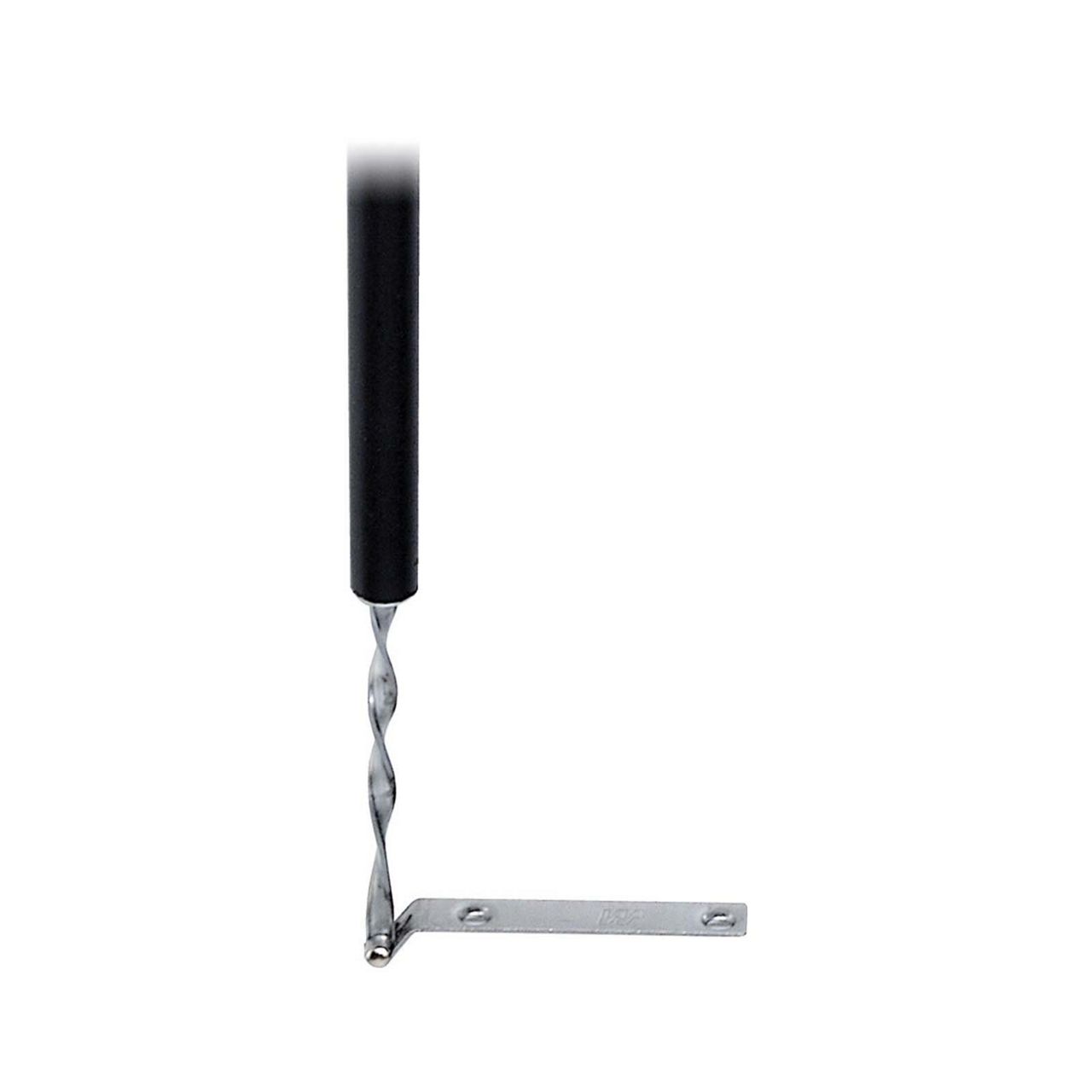

Whitco Spiral Sash Window Balances
Narrow, fully sealed variable pitch spiral and torsion spring balance and foot system for timber or aluminum double hung windows
Features of the Spiral Sash Window Balances
- Fully sealed construction
- Oil tempered carbon steel torsion spring
- Zinc plated variable pitch spiral
- Metal zinc diecast fixing plug
- Tough ABS polymer outer casing available in Black
- Corrosion resistant stainless steel sash foot plate
- Comprehensive range of tube lengths and balance weight
- Adjustable spring tension to suit application
- Shock absorbing stops available
- Range of feet available
- Individual balances in Trade packs available
- Tension key required for adjustable foot version
- Australian Made
Spiral Sash Window Balances
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Foot Options - available with either
- Standard foot
Attached to spiral rod, includes accessory kit - Ready to accept adjustable foot
Foot sold separately and accessory pack sold separately.
Recommended Sash Weights
| Weight Range | Rating |
| Weight range 1 | 2.25 to 7.25 Kg |
| Weight range 2 | 7.25 to 10 Kg |
| Weight range 3 | 10 to 14 Kg |
It is recommended that spiral balances are supported in a 15mm x 15mm rebate.
Finishes
Available in Black tube colour
Technical Downloads
- Spiral Balance Tube Unit Instructions(PDF, 813 KB)
| Item | Part number | Barcode |
|---|---|---|
| TRADE PACK | ||
| Weight Range 2.25 - 7.25kg | ||
| (Standard Foot attached & Accessory Pack) - 110 Std, Black | W611101117 | 9311847720978 |
| (Standard Foot attached & Accessory Pack) - 200 Std, Black | W612001117 | 9311847720985 |
| (Standard Foot attached & Accessory Pack) - 220 Std, Black | W612201117 | 9311847720992 |
| (Standard Foot attached & Accessory Pack) - 240 Std, Black | W612401117 | 9311847721005 |
| (Standard Foot attached & Accessory Pack) - 260 Std, Black | W612601117 | 9311847721012 |
| (Standard Foot attached & Accessory Pack) - 280 Std, Black | W612801117 | 9311847721029 |
| (Standard Foot attached & Accessory Pack) - 210 Std, Black | W612101117 | 9311847721036 |
| (Standard Foot attached & Accessory Pack) - 300 Std, Black | W613001117 | 9311847721043 |
| (Standard Foot attached & Accessory Pack) - 320 Std, Black | W613201117 | 9311847721050 |
| (Standard Foot attached & Accessory Pack) - 340 Std, Black | W613401117 | 9311847721067 |
| (Standard Foot attached & Accessory Pack) - 360 Std, Black | W613601117 | 9311847721074 |
| (Standard Foot attached & Accessory Pack) - 380 Std, Black | W613801117 | 9311847721081 |
| (Standard Foot attached & Accessory Pack) - 310 Std, Black | W613101117 | 9311847721098 |
| (Standard Foot attached & Accessory Pack) - 400 Std, Black | W614001117 | 9311847721104 |
| (Standard Foot attached & Accessory Pack) - 420 Std, Black | W614201117 | 9311847721111 |
| (Standard Foot attached & Accessory Pack) - 440 Std, Black | W614401117 | 9311847721128 |
| (Standard Foot attached & Accessory Pack) - 460 Std, Black | W614601117 | 9311847721135 |
| (Standard Foot attached & Accessory Pack) - 480 Std, Black | W614801117 | 9311847721142 |
| (Standard Foot attached & Accessory Pack) - 410 Std, Black | W614101117 | 9311847721159 |
| (Standard Foot attached & Accessory Pack) - 500 Std, Black | W615001117 | 9311847721166 |
| Note: The balance number is not the length of the balance. Please refer to the replacement balance chart or contact customer service on 1300 LOCK UP. | ||
| (Adjustable Foot & Accessory Pack both sold seperately) - 110 Adjustable, Black | W611101017 | 9311847720091 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 200 Adjustable, Black | W612001017 | 9311847720107 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 220 Adjustable, Black | W612201017 | 9311847720114 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 240 Adjustable, Black | W612401017 | 9311847720121 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 260 Adjustable, Black | W612601017 | 9311847720138 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 280 Adjustable, Black | W612801017 | 9311847720145 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 210 Adjustable, Black | W612101017 | 9311847720152 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 300 Adjustable, Black | W613001017 | 9311847720169 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 320 Adjustable, Black | W613201017 | 9311847720176 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 340 Adjustable, Black | W613401017 | 9311847720183 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 360 Adjustable, Black | W613601017 | 9311847720190 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 380 Adjustable, Black | W613801017 | 9311847720206 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 310 Adjustable, Black | W613101017 | 9311847720213 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 400 Adjustable, Black | W614001017 | 9311847720220 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 420 Adjustable, Black | W614201017 | 9311847720237 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 440 Adjustable, Black | W614401017 | 9311847720244 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 460 Adjustable, Black | W614601017 | 9311847720251 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 480 Adjustable, Black | W614801017 | 9311847720268 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 410 Adjustable, Black | W614101017 | 9311847720275 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 500 Adjustable, Black | W615001017 | 9311847720282 |
| Weight Range 7.25 - 10kg | ||
| (Standard Foot attached & Accessory Pack) - 400 Std, Black | W614002117 | 9311847721173 |
| (Standard Foot attached & Accessory Pack) - 420 Std, Black | W614202117 | 9311847721180 |
| (Standard Foot attached & Accessory Pack) - 440 Std, Black | W614402117 | 9311847721197 |
| (Standard Foot attached & Accessory Pack) - 460 Std, Black | W614602117 | 9311847721203 |
| (Standard Foot attached & Accessory Pack) - 480 Std, Black | W614802117 | 9311847721210 |
| (Standard Foot attached & Accessory Pack) - 410 Std, Black | W614102117 | 9311847721227 |
| (Standard Foot attached & Accessory Pack) - 500 Std, Black | W615002117 | 9311847721234 |
| (Standard Foot attached & Accessory Pack) - 520 Std, Black | W615202117 | 9311847721241 |
| (Standard Foot attached & Accessory Pack) - 540 Std, Black | W615402117 | 9311847721258 |
| (Standard Foot attached & Accessory Pack) - 560 Std, Black | W615602117 | 9311847721265 |
| (Standard Foot attached & Accessory Pack) - 580 Std, Black | W615802117 | 9311847721272 |
| (Standard Foot attached & Accessory Pack) - 510 Std, Black | W615102117 | 9311847721289 |
| (Standard Foot attached & Accessory Pack) - 600 Std, Black | W616002117 | 9311847721296 |
| (Standard Foot attached & Accessory Pack) - 620 Std, Black | W616202117 | 9311847721302 |
| (Standard Foot attached & Accessory Pack) - 640 Std, Black | W616402117 | 9311847721319 |
| (Standard Foot attached & Accessory Pack) - 660 Std, Black | W616602117 | 9311847721326 |
| (Standard Foot attached & Accessory Pack) - 680 Std, Black | W616802117 | 9311847721333 |
| (Standard Foot attached & Accessory Pack) - 610 Std, Black | W616102117 | 9311847721340 |
| (Standard Foot attached & Accessory Pack) - 700 Std, Black | W617002117 | 9311847721357 |
| (Standard Foot attached & Accessory Pack) - 720 Std, Black | W617202117 | 9311847722729 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 400 Adjustable, Black | W614002017 | 9311847720299 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 420 Adjustable, Black | W614202017 | 9311847720305 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 440 Adjustable, Black | W614402017 | 9311847720312 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 460 Adjustable, Black | W614602017 | 9311847720329 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 480 Adjustable, Black | W614802017 | 9311847720336 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 410 Adjustable, Black | W614102017 | 9311847720343 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 500 Adjustable, Black | W615002017 | 9311847720350 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 520 Adjustable, Black | W615202017 | 9311847720367 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 540 Adjustable, Black | W615402017 | 9311847720374 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 560 Adjustable, Black | W615602017 | 9311847720381 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 580 Adjustable, Black | W615802017 | 9311847720398 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 510 Adjustable, Black | W615102017 | 9311847720404 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 600 Adjustable, Black | W616002017 | 9311847720411 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 620 Adjustable, Black | W616202017 | 9311847720428 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 640 Adjustable, Black | W616402017 | 9311847720435 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 660 Adjustable, Black | W616602017 | 9311847720442 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 680 Adjustable, Black | W616802017 | 9311847720459 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 610 Adjustable, Black | W616102017 | 9311847720466 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 700 Adjustable, Black | W617002017 | 9311847720473 |
| Weight Range 10 - 14kg | ||
| (Standard Foot attached & Accessory Pack) - 400 Std, Black | W614003117 | 9311847721364 |
| (Standard Foot attached & Accessory Pack) - 420 Std, Black | W614203117 | 9311847721371 |
| (Standard Foot attached & Accessory Pack) - 440 Std, Black | W614403117 | 9311847721388 |
| (Standard Foot attached & Accessory Pack) - 460 Std, Black | W614603117 | 9311847721395 |
| (Standard Foot attached & Accessory Pack) - 480 Std, Black | W614803117 | 9311847721401 |
| (Standard Foot attached & Accessory Pack) - 410 Std, Black | W614103117 | 9311847721418 |
| (Standard Foot attached & Accessory Pack) - 500 Std, Black | W615003117 | 9311847721425 |
| (Standard Foot attached & Accessory Pack) - 520 Std, Black | W615203117 | 9311847721432 |
| (Standard Foot attached & Accessory Pack) - 540 Std, Black | W615403117 | 9311847721449 |
| (Standard Foot attached & Accessory Pack) - 560 Std, Black | W615603117 | 9311847721456 |
| (Standard Foot attached & Accessory Pack) - 580 Std, Black | W615803117 | 9311847721463 |
| (Standard Foot attached & Accessory Pack) - 510 Std, Black | W615103117 | 9311847721470 |
| (Standard Foot attached & Accessory Pack) - 600 Std, Black | W616003117 | 9311847721487 |
| (Standard Foot attached & Accessory Pack) - 620 Std, Black | W616203117 | 9311847721494 |
| (Standard Foot attached & Accessory Pack) - 640 Std, Black | W616403117 | 9311847721500 |
| (Standard Foot attached & Accessory Pack) - 660 Std, Black | W616603117 | 9311847721517 |
| (Standard Foot attached & Accessory Pack) - 680 Std, Black | W616803117 | 9311847721524 |
| (Standard Foot attached & Accessory Pack) - 610 Std, Black | W616103117 | 9311847721531 |
| (Standard Foot attached & Accessory Pack) - 700 Std, Black | W617003117 | 9311847721548 |
| (Standard Foot attached & Accessory Pack) - 720 Std, Black | W617203117 | 9311847721555 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 400 Adjustable, Black | W614003017 | 9311847720480 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 420 Adjustable, Black | W614203017 | 9311847720497 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 440 Adjustable, Black | W614403017 | 9311847720503 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 460 Adjustable, Black | W614603017 | 9311847720510 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 480 Adjustable, Black | W614803017 | 9311847720527 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 410 Adjustable, Black | W614103017 | 9311847720534 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 500 Adjustable, Black | W615003017 | 9311847720541 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 520 Adjustable, Black | W615203017 | 9311847720558 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 540 Adjustable, Black | W615403017 | 9311847720565 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 560 Adjustable, Black | W615603017 | 9311847720572 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 580 Adjustable, Black | W615803017 | 9311847720589 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 510 Adjustable, Black | W615103017 | 9311847720596 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 600 Adjustable, Black | W616003017 | 9311847720602 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 620 Adjustable, Black | W616203017 | 9311847720619 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 640 Adjustable, Black | W616403017 | 9311847720626 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 660 Adjustable, Black | W616603017 | 9311847720633 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 680 Adjustable, Black | W616803017 | 9311847720640 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 610 Adjustable, Black | W616103017 | 9311847720657 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 700 Adjustable, Black | W617003017 | 9311847720664 |
| (Adjustable Foot & Accessory Pack both sold seperately) - 720 Adjustable, Black | W617203017 | 9311847720671 |
| Spiral Sash Balance Accessory Kit - To suit 1 Window with 4 Balances - With Top and Bottom Stop, Fixing Screws, Black | W492900 | 9310584005157 |
| Spiral Sash Balance Accessories - Tension Key | W492700 | 9310584030128 |
| Spiral Sash Balance Accessories - Spiral Long Stop | W493000 | 9310584030142 |
| Spiral Sash Balance Accessories - Adjustable Foot - Light, Heavy & Extra Heavy Duty | W615100 | 9310584030104 |
| Spiral Sash Balance Accessories - Adjustable Foot - Super Heavy Duty | W615300 | 9311847485693 |
| Spiral Sash Balance Accessories - TFD Foot | W615200 | 9310584030111 |
