Whitco Lawson Sliding Patio Door Lock

Polymer slimline pull mounted to a metal lock base, with polymer external pull.

Suitable for residential aluminium or timber sliding doors.

Features of the Lawson Sliding Patio Door Lock

  • Surface Mounted
  • Standard 82mm fixing holes
  • Central turnbar hole for external cylinders
  • Integral anti-lift pins to resist attempts to lift the door out of its track
  • Non-handed
  • Adjustable stainless steel locking beak, with 6mm closing adjustment
  • Self retracting beak avoids damage and accidental lockout
  • Suitable for use with a wide range of outer pulls and strikes
  • Available in Double Cylinder, External Single Cylinder, Internal Single Cylinder, Snib Only and Dummy variants.
5c3fb-lawson-sliding-patio-door-lock

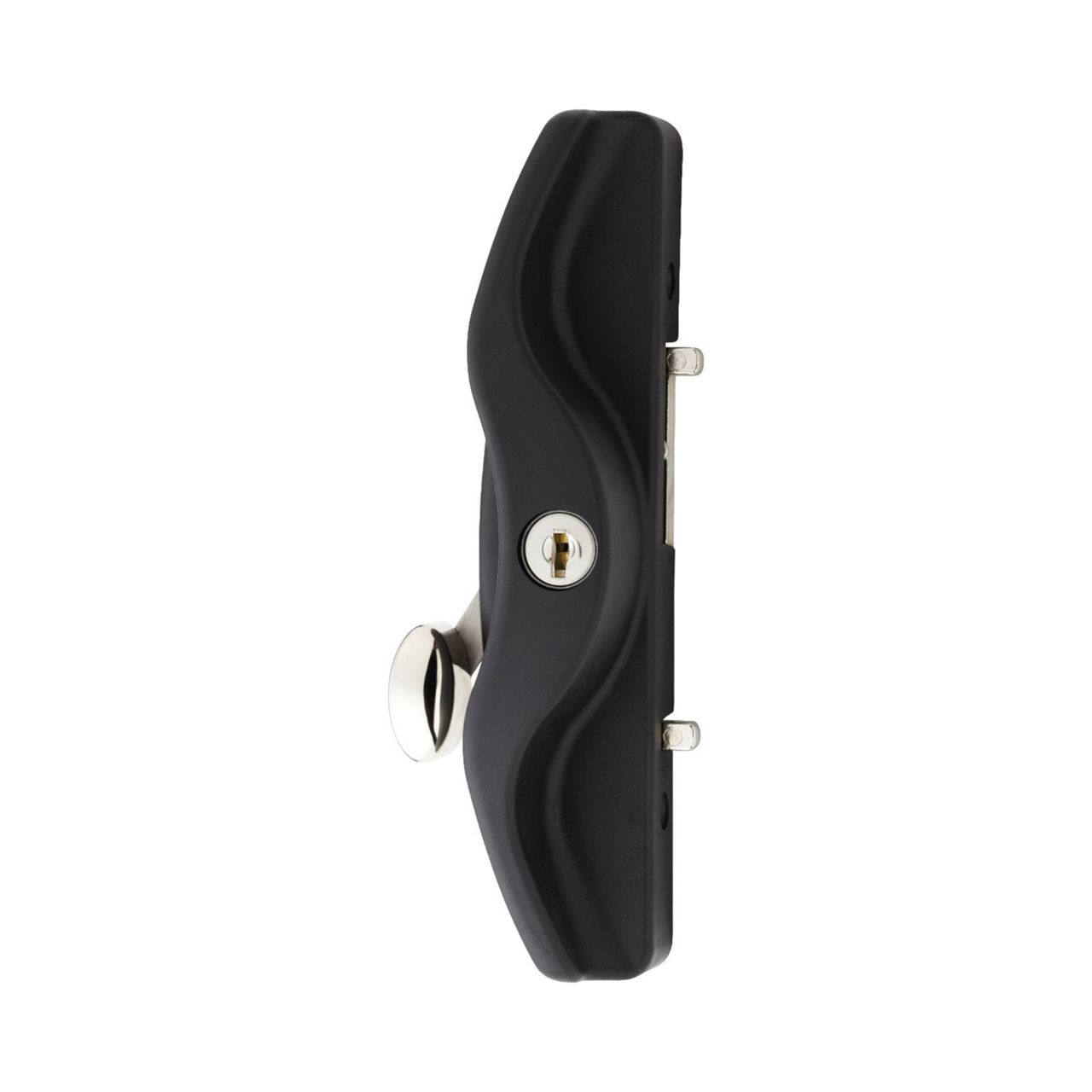

Lawson Sliding Patio Door Lock

5c3fb-lawson-sliding-patio-door-lock
  • Available in Trade Pack only
  • Design Registered



Dimensions

Keying

Lawson uses 10 Disc cylinders as standard. 5 Pin C4 cylinders can be supplied as an option. C4 cylinder versions can be keyed alike to other C4 and CYL4® Whitco and Lockwood products.

  • Whitco Sliding Door Hardware Catalogue(PDF, 788 KB)
ItemPart numberBarcode
TRADE PACK
Double Cylinder - with Outerpull & Strike, 44mm Screws - 10 Disc Cylinder Inside & Outside, KD, Polymer Cover, Universal Strike for front or face fixing strikeW5052179311847776272
Double Cylinder - with Outerpull, No Strike, 44mm Screws - 10 Disc Cylinder Inside & Outside, KAW5054179311847776289
Double Cylinder - with Flat Outerpull, No Strike, 44mm Screws - 10 Disc Cylinder Inside & OutsideW5058179311847776296
External Cylinder Only - No Strike, 44mm Screws - 10 Disc Outer Cylinder, Polymer Offset OuterpullW5061179311847776326
External Cylinder Only - No Strike, 44mm Screws - 10 Disc Outer Cylinder, Flat Polymer OuterpullW5062179311847776333
No Cylinder - No Strike, 44mm Screws - No Cylinder Inside or Outside, Polymer Offset OuterpullW5065179311847776364
